Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min
Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min
Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min
Contact Now

Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min

Minimum Order Quantity : 1 sets Price : negotiable
Packaging Details : Sea-Worthy Packing or Air-Worthy Packing Delivery Time : 40 days
Payment Terms : L/C, T/T Supply Ability : 5 sets per month
Place of Origin: Jiangsu Province,China Brand Name: Haitel
Certification: CE/ISO9001 Model Number: HTL-A1200-1

Detail Information
Max.output: 200-1000bags/min Total Power: 8.5kw
Volatge: 380V 50HZ Dimension: 6000*1200*1700mm
Automatic Grade: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Application: Circle,square,rectangle Solid Products,chocolate,cereal Bars Etc. Packing Way: Pillow Packaging
High Light:

7.5KW Pillow Snacks Packing Machine

,

Pillow Snacks Packing Machine 900pcs/Min

,

PLC Pillow Snacks Packing Machine

Product Description

Automatic feeding conveyor pillow confectionery snacks food packing machine 200-1000bag/min





Characteristics

This machine adopts full servo motor intelligent zed control and runs with low noise, which makes the working condition more comfortable.

The machine is highly automated. It can be connecting to the production line directly; the processes of feeding, forming, filling and sealing are fully automatic.

The machine adopts the industrial touch screen, human-machine interface. It. It intuitively shows the parameter and has the menu operation, which makes the operator easier to use.

The machine has device for film auto-connection, which makes process of packing more smoothly.

Unique design of machine makes high speed auto-packing of small chocolates comes true.



Application

The machine is for automatic packing of round, square and rectangle chocolate products in pillow packing.



Support language

A, Chinese B, English



Option for devices available

1. Code printer

2. Film auto connecting device



Main technical



Model HTL-1000-1
Production Capacity Max. 900pcs/min
Packing Range

Bag Length: 55~130 mm;

Bag Width: 15~60 mm;

Bag Height: 5~20mm
Max. Diameter of Film 300 mm
Max. width of Film 150 mm
Total power 7.5 KW
Voltage 380 V 50Hz
Total Weight 1300 kg
Dimension (L*W*H) 6000×1200×1700 mm



Configuration



NO. Parts Brand
1 PLC Siemens
2 Touching Screen Siemens
3 Coder Koyo Janpan
4 Motor Taiwan TECO
5 Servo Motor Taiwan TECO
6 Servo Drive Taiwan TECO
7 Frequency converter DANFOSS (VLT) FRENCH
8 Indicating Light DELIXI
9 Switch DELIXI
10 Urgent Stop Switch DELIXI
11 Solenoid valve SMC JANPAN
12 Contractor Schneider
13 Approach Switch DELIXI
14 Photo electrical eye YATAI
15 Temperature controller Omron



Spare parts list (FREE)



NO. Name Quality
1 Electric heating tube 4
2 Electric heating circle 2
3 Electric thermal couple 2
4 Conveying claw 5
5 Cutting knife 2
6 Internal hexagonal spanner 1
7 Oil gum 1
8 Opening spanner 1
9 Certificate of inspection 1
10 Manual 1

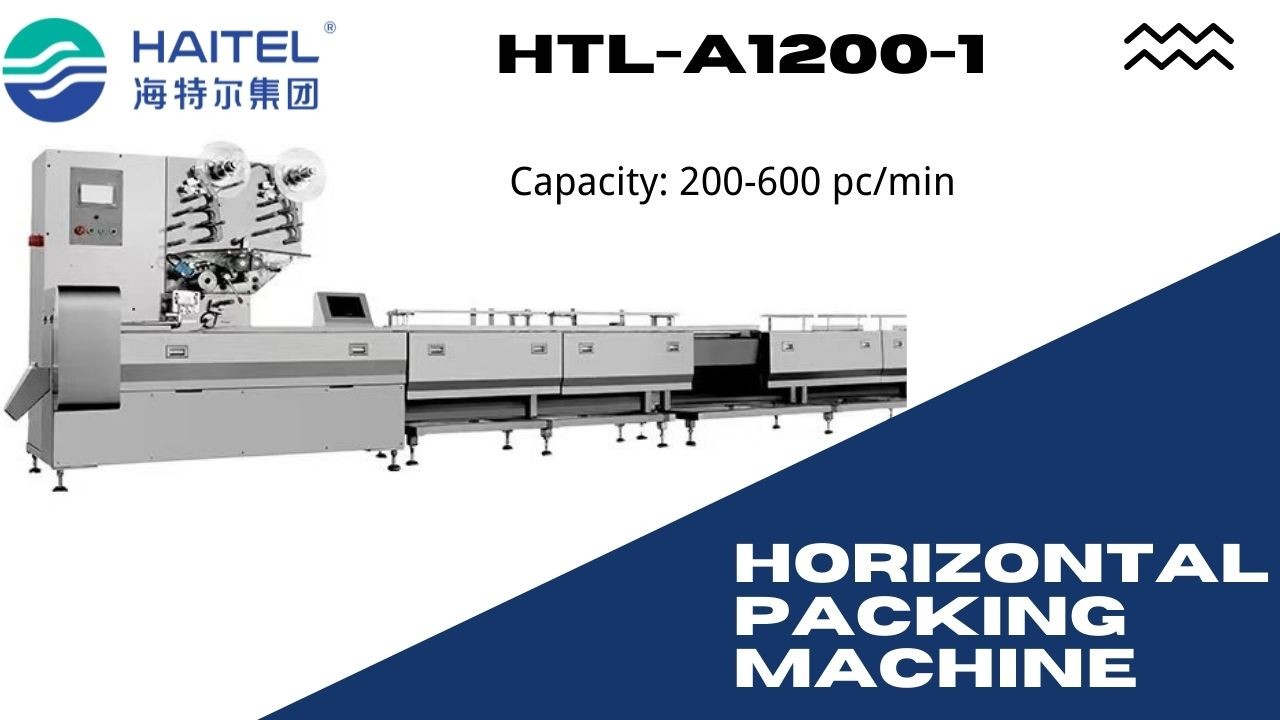

Machine pictures
Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min 0
Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min 1Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min 2

Making Food
Intelligent 7.5KW Pillow Snacks Packing Machine 900pcs/Min 3
