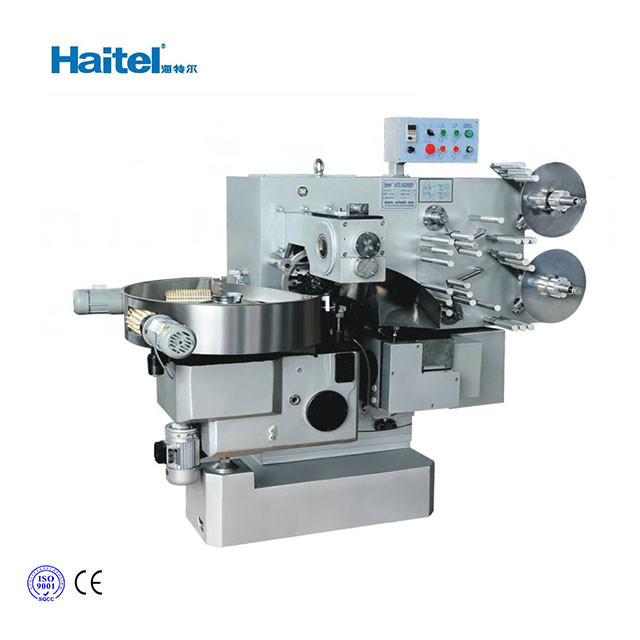

Single Double Twist Automatic Chocolate Packing Machine 550 Bags/Min

Minimum Order Quantity : 1 set Packaging Details : wooden case
Supply Ability : 15 sets per month
Place of Origin: China Brand Name: Haitel
Certification: CE, ISO Model Number: HTL-S800

Detail Information

Voltage: 380V Warranty: 1 Year
Automatic Grade: Automatic Function: Packing And Sealing
After-sales Service Provided: Video Technical Support,Field Maintenance And Repair Service Condition: New
Customed Made: Yes Multi-language: Yes
Type: Multi-Function Packaging Machine Power: 7.5kw
Capacity: 550 Bags/min
High Light:

Double Twist Chocolate Packing Machine

,

550 Bags/Min Chocolate Packing Machine

,

3Kw Chocolate Packing Machine

Product Description

Multi-servo feed processing machine Horizontal chocolate Candy Bar flow Packing Machine

Product Description



1. Characteristics:

1. It applies for double and single twist packing candy with the shapes of rectangle, ellipse, waist-round, cylindrical, spherical, square and beef also all food with regular shapes, easy to operate, high efficiency, manpower saving, pretty style, low noise, working smoothly, low fault occurrence, convenient to repair.

2. Main core part of this machine adopts imported, new style. High-density Cam indexing unit and cam gear can reach exact movement.

3. AC motor with transducer, controlled with infinite speed control, high precision, energy saving to prolong its life, also it can be adjusted when it is working.

4. Controlled by full auto built-in computer, inspected by international advanced photoelectric sensor, traced bi-directional with fast speed, 100% packing rate, no empty package.

5. Overload protection, breakage protection, no film with prompt alarming.

6. Food touch parts adopt stainless steel, good smoothness, easy to clean, and totally meets standard of food sanitation.

7. Single and double layers of wrapping paper are used.

8. It can be equipped with auto hopper.



2. Application:

It is applicable to hard candy, rabbit creamy candy, toffee candy, rectangle, elliptic and column candy for double layer or single layer double-twisting packing.



3. Main technical parameters and price:

Type HTL-S800
Packing speed 200~550 pcs/min
Packing size (L)=11~33 mm; (W)=11~25 mm; (H)=5~20 mm
Film width ≤ 120 mm
Dimension (L*W*H) 1700 × 918 × 1475 mm
Voltage 380 V/50Hz
Total power 3 Kw



Packing Samples:

Single Double Twist Automatic Chocolate Packing Machine 550 Bags/Min 0
