Semi automatic easy to operate 3 layer mask packing machine

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Seaworthy packing Delivery Time : 10-15 days
Payment Terms : L/C, T/T Supply Ability : 20 pcs per month
Place of Origin: China Brand Name: Haitel
Certification: CE Model Number: HTL-280

Detail Information

Automatic Grade: Semi-Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 220V Power: 3kw
Packing Film Width: Maximum 350mm Packaging Type: Bags, Film

Product Description

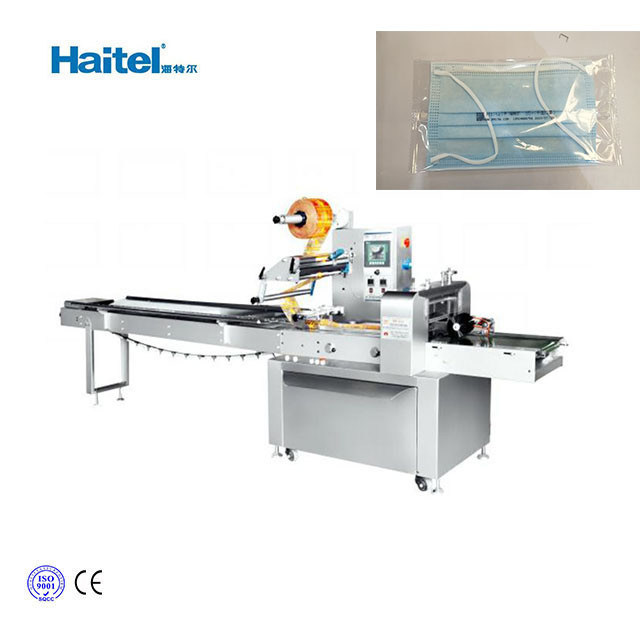

Semi automatic easy to operate 3 layer mask packing machine


Suitable for single and multiple disposable masks, medical masks, wipes, masks, paper towels, etc.



1. Double inverter control (optional servo motor), the bag length can be set and cut, no need to adjust the air, one step in place, saving time and film.
2. Human-machine interface, parameter setting is convenient and fast.
3. Fault self-diagnosis function, the fault display is clear at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.
5. Temperature independent PID control, better suited to a variety of packaging materials.
6. Positioning stop function, no sticking knife, no waste film.
7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8. All control is realized by software, which is convenient for function adjustment and technical upgrade,and keeps advanced.

Main technical data


Model HTL-280B
Packaging film width Max.280mm
Bag length 90-220或150-320mm
Bag width 50-140mm
Product height Max.40mm
Film roll diameter 300mm
Packing speed 50-250bag/min
Voltage specification 220V/380V 50HZ
Power Specifications 2.5kw
Machine size (L)4200×(W)1250×(H)1750mm
Total weight 700Kg
Remarks Can be equipped with inflatable, coding device



1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.

2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.



1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.

2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.

3.From the date of the buyer receive the machines, free warrant for 12 months.


Packaging and Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Quality Guarantee

The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.



• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.
