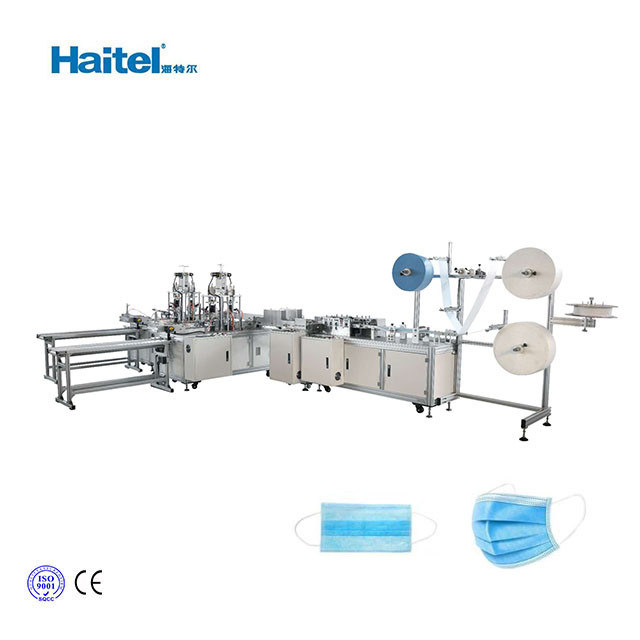

Disposable 3 Ply Automatic Nonwoven Mask Making Machine

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Sea-Worthy Packing or Air-Worthy Packing Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 10 sets per month
Place of Origin: Jiangsu Province, China Brand Name: Haitel
Certification: CE ISO9001 ISO140001 SGS Model Number: HTL-120

Detail Information

Speed: 80-150pcs Per Min Voltage: 220V 50HZ
Application: Face Mask Maker Warranty: 1 Year
Name: Facial Mask Machine Operation System: Other
High Light:

Automatic Nonwoven Mask Making Machine

,

Disposable Nonwoven Mask Making Machine

,

3 Ply Nonwoven Mask Making Machine

Product Description

Disposable 3 ply mask making machine surgical face automatic medical Nonwoven Mask Making Machine

Mask Sheet Forming Machine

Introduction

The plane mask machine developed and produced by Jiangsu Haitel Machinery Co., Ltd is a highly efficient integrated device, which is mainly used for the fully automatic production of flat masks with outer ears and no edge bands under four layers.
This equipment adopts one-to-two structure design and uses ultrasonic welding technology. It has the characteristics of advanced technology, reasonable structure, stable operation and convenient operation.
1.Equipment applicable materials
Non-woven fabrics, ultra-fine polypropylene fiber melt-blown cloth, ultra-thin polypropylene melt-blown cloth, sanitary gauze, calendered cloth, activated carbon cloth, filter paper and other non-woven materials can be used for mask production.
Equipment use function
(1) Roll material
(2) Pack nose bridge line
(3) Forming
(4) Ultrasonic press lace
(5) Cut sheet
3. Applicable Products
(1)17.5x9.5cm
2~4 Layered face mask, mask size 17.5x9.5cm
(2)Civilian plane mask
(3) Medical plane mask
4. Equipment function
(1) After using ultrasonic and special knurling wheel pressure, you can get the above functions.
(2) No smoke, sparks, or damage to cloth edges during processing, nor burrs.
(3) The knurling wheel can be replaced with various round knurling wheels according to customer requirements.
(4) No preheating required during manufacturing and continuous operation.
(5) The knurled wheel made of special alloy steel material, and through special heat treatment process, has the characteristics of wear resistance and long service life.
(6) The equipment is easy to operate and easy to maintain
5. Equipment composition
The composition and function of the mask sheet forming machine equipment:
Material feeder: Install mask non-woven fabric roll material and nose bridge wire roll material
Main machine: Make the mask main body
Disposable 3 Ply Automatic Nonwoven Mask Making Machine 0


6. Equipment size & layout
Disposable 3 Ply Automatic Nonwoven Mask Making Machine 1

7. Main parameters of equipment (for reference only)

Model HTL-120
Overall size (mm) 3570(L)×1980(W)×935(H) mm
Total weight 500kg
Mask size specifications 17.5×9.5cm(Adult)
Voltage

220V 50Hz
Single Phases, 220V, 50Hz

Power 2kw
Line efficiency 80-180pcs/min
Equipment production pass rate

≥95%
(Except when the incoming materials do not meet the requirements and the employees do not operate properly)

Production environment requirements

Temperature 10 ~35℃
Humidity 5-55%HR
No flammable, corrosive gas,
No dust (Cleanness not less than 100,000)

Feeding reel specifications

The specifications of 3 feed reels or 4 feed reels can be selected: 4 reels (or 3 reels) * 650mm diameter fabric roll material. 3 reels * 1000mm diameter fabric roll material.



HTL-120
Ear loop welding machine


1.Main technical

 Model HTL
Dimension (mm) 2000(L)×1000(W)×1500(H) mm*2台
Weight 500kg*2台
Size of mask 17.5×9.5cm(成人adult)
Voltage 220V,单相Single,50Hz
Power 2.5kw*2set
Capacity 70-120 pcs/min



Production environment requirements

temperature 10 ~35℃

humidity 5-55%HR

No flammable, corrosive gas,

No dust (cleanness not less than 100,000)


2.Common equipment configuration requirements
Configuration list of main components



No.



Item



Brand



Remark

1 cylinder JPC
2 The electromagnetic valve JPC
3 Servo motor Niding / Taiwan
4 Driver Niding / Taiwan
5 PLC Xinjie
6 touch screen Xinjie
7 Relay DELIXI
8 Button DELIXI
9  motor OPG/Taiwan


Packaging and Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Quality Guarantee
The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.

WHY CHOOSE US?
• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.

Contact us and get latest price
You are very welcome to visit our Shanghai office and Jiangsu factory to inspect the machines.We are looking forward to build a long term relationship with you!
Pls feel free to contact us when you need further support.

Machine pictures
Disposable 3 Ply Automatic Nonwoven Mask Making Machine 2
