Sus Automatic Energy Cereal Bar Molding Making Machine PLC Control 5kw 380v

Minimum Order Quantity : 1set Price : negotiable
Packaging Details : packing film Delivery Time : 30days
Payment Terms : T/T, L/C Supply Ability : 10set/month
Place of Origin: China Brand Name: Haitel
Certification: CE ISO9001 Model Number: HTL

Detail Information

Voltage: 380V Dimension: 1720*880*1780 Mm
Usage: Factory Use Weight: 500kg
Automatic Grade: Automatic Material: SUS304
Warranty: 1 Year Capacity: 250-480kg/h
High Light:

5kw Sus Cereal Bar Making Machine


Automatic Cereal Bar Forming Machine 380v


PLC Control Energy Cereal Bar Machine

Product Description

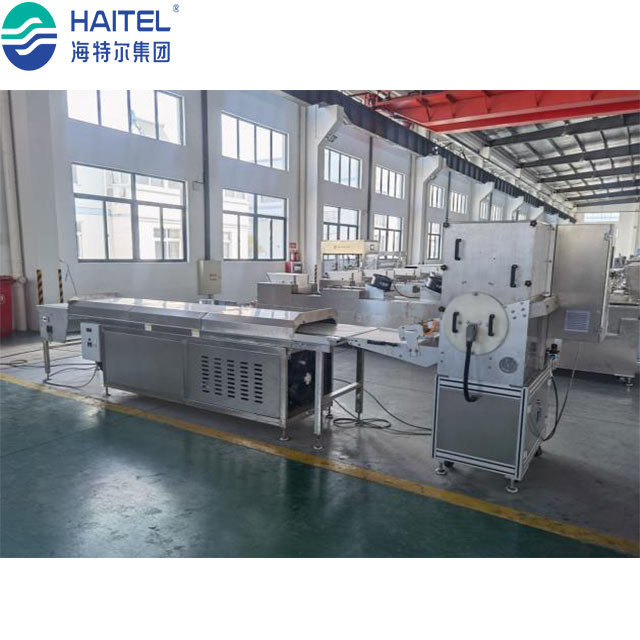

PLC control sus automatic 250-480kg/h energy cereal bar molding making machine 5kw 380v



This main product is an advanced product for the production of "light food nutrition meal replacement cereal bars" developed by referring to German technology and domestic practice. Its characteristics: PLC control and the operation are simple. The detachable mold is convenient for changing specifications, cleaning, and maintenance. There are many varieties of "grain", "jujube puree" and "cheese", and the appearance is full and bright. The enclosed model is hygienic, safe, and reliable in operation. Since this product was put on the market, it has been favored by users at home and abroad, and it is the preferred machine for manufacturers producing "grain, puree, and cheese".


Main technical parameter :

Production size

Rectangular, square, round, spherical, special-shaped, etc. (Optional)

Production capacity 250-480 kg/hour
Conveyor belt speed 2-6 m/min
Power 1.5 KW ( Forming),3.5 KW ( Cooling tunnel)
Voltage 3Phases, 380V, 50/60 Hz
Air pressure 0.6-0.8 MPa
Weight 400 kg ( Forming),480 kg (Cooling tunnel) (Optional)
Dimension (L*W*H) 1720*880*1780 mm ( Forming),4080*780*950 mm ( Cooling tunnel) (Optional)


This machine can be used to produce cereal bars, peanut bars, cereal balls, fruit cereal balls, etc.



• Top Food machine manufacturer in China
• 20000 square meters of production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professional team with strong technical and R&D knowledge to develop advanced food equipment
• save labor costs and improve the capacity.


Packaging and Delivery

1. Prompt delivery on the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Sus Automatic Energy Cereal Bar Molding Making Machine PLC Control 5kw 380v 0Sus Automatic Energy Cereal Bar Molding Making Machine PLC Control 5kw 380v 1
