200Bags/Min Horizontal Flow Pack Machine For Fruit Vegetable

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Sea-Worthy Packing or Air-Worthy Packing Delivery Time : 30 days
Payment Terms : L/C, T/T Supply Ability : 10 pcs per month
Place of Origin: China Brand Name: Haitel
Certification: CE SGS ISO Model Number: HTL-480A

Detail Information

Packing Speed: 100~300 Bags/min Membrane Width: ≤480mm
Voltage: 380V/50Hz Total Power: 4 KW
Motor Power: 1.5 KW Heating Power: 2.5 KW
High Light:

200Bags/Min Horizontal Flow Pack Machine


Fruit Vegetable Horizontal Flow Pack Machine


4KW Horizontal Flow Pack Machine

Product Description

200 bags/min automatic Plastic Film Horizontal Flow Packing Machine For fruit and vegetable




Full computer controlled, frequency conversion controls speeding, high detective photoelectric device, independent sealing temperature control, applicable to many packaging material, mechanical simplicity, easy to maintenance, low wearing, long service life. Feeding paper from bottom, it has push feeder (HTL-480A) and membrane feeder (HTL-480B) types.



It is applicable to special packing for soft and long products like instant noodle, wet tissue, bread, meet, chicken meet, dried noodle, egg roll, soft candy, fresh fruit and towel.


Main technical parameter

Mode HTL-480A/480B
Making-bag size (L)=70~360mm, (W)=30~120mm, (H)=3~50mm
Packing speed 100~300 bags/min
Membrane width ≤480mm
Voltage 380V/50Hz
Total power 4 KW
Motor power 1.5 KW
Heating power 2.5 KW
Dimension (L*W*H) 4800×950×1150 mm
Total weight 1000 kg


HTL-480 Main collocate

①PLC and touch screen: Taiwan

② Photoelectricity switch: Yatai

③ Transducer: Yatai

④ Push button: Delixi

⑥ Temperature controller: Delixi

⑦Approach switch: Delixi

⑧Servomotor: Taiwan

⑨Motor: Zhongweite


HTL-480 spare parts list (FREE)

1. Electric heating tube 2

2. Electric heating circle 1

3. Electric thermal couple 1

4. Conveying claw 5

5. Cutting knife 2

6. Internal hexagonal spanner 1

7. Oil gum 1

8. Opening spanner 1

9. Certificate of inspection 1

10. Manual 1

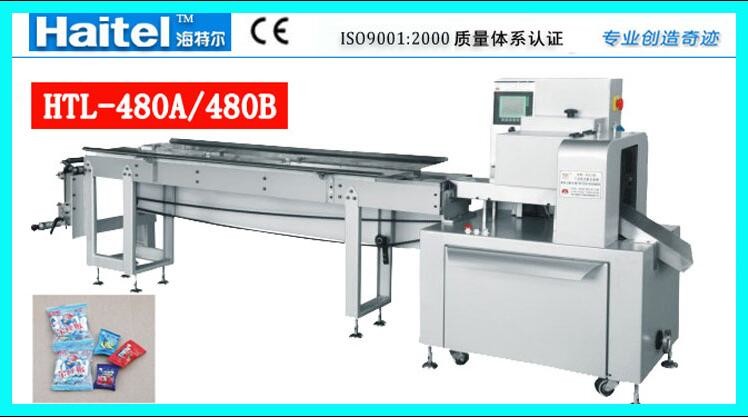

Machine pictures


200Bags/Min Horizontal Flow Pack Machine For Fruit Vegetable 0


1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.

2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.



1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.

2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.

3.From the date of the buyer receive the machines, free warrant for 12 months.


Packaging and Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Quality Guarantee

The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.



• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.
