40kg/H 16mm Stick Crispy Egg Roll Bakery Making Machine 5kw

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Sea-Worthy Packing Delivery Time : 40 days
Payment Terms : L/C, T/T, Western Union Supply Ability : 8 sets
Place of Origin: Jiangsu Province,China Brand Name: Haitel
Certification: CE/ISO9001 Model Number: HTL-2200

Detail Information

Weight Range: 15-200g/min Capacity: 30-40kg/hr
Weight: 2600kg Dimension(l*w*h): 1600×850×1000
Application: Chocolate Electric Heating Power: 5kw
High Light:

Crispy Egg Roll Bakery Making Machine

,

40kg/H Egg Roll Bakery Making Machine

,

Bakery Making Machine 5kw

Product Description

Stainless Steel factory manufacturing competitive price crisp egg roller making production line machine



Introduction:

Egg roll production unit is composed of storing barrels, transmission liquid machines, liquid barrels, color machine, 360 ° rotating auto-baked round, shovel device and the automatic roll feed cutting and electrical control cabinet.It uses far infrared baking , can produce two-color or multi-color hollow egg roll.



Application:

First step, to make flour, starch, oil, eggs, sugar and other raw materials in the mixer where mixing, and then, take mixing liquid into storing barrel of baking machine, mixing materials through filter transfer into storing barrel continuously by transmission pump and automatic laying-off, the mixing materials is baked on the rotating baking round ,and finished color processing.

There is automatic bade egg rolls in the bottom baking round ,it can continuous automatic shovel egg roll ,the egg roll materials is fallen on the transferring belt of egg roll forming machine, and forming hollow and cylinder shape by belt and roll stick, at last , cutter cuts egg roll into the specifications of the length by customers.



Characteristics

1.The baking machine is heated with gas to give a space of a effective temperature-holding, utilizing energy reasonably, by a automatic control system including ignition, alarm cut-off gas generator and temperature control devices.

2.The machines of the unit are installed with a program-controlled system.

3.The speed of the wheel hub and the powder slurry thickness can be adjusted.

4.The diameter of wafer bar can be changed by transferring different reeling bar shafts.

5.The length of wafer bar can be changed by adjusting the diaphragm aperture, which controls a shear.

6.The cream and other fillings can be completely or partly poured into hollow-core wafer bar. In the proceeding above, their main engines are controlled by their own frequency converters.




Main technical data

Model HTL-2200
Diameter of Wheel Hub (mm) 2000
Gas Consumption (kg/h) 4
Power Consumption (kw/h) 10
Stick diameter  Between 8~16mm
Length of egg roll or stick  About 30~150mm, can do more longer according client special order
Production Capacity(kg/h)  Hollow core 25-30; Poured core 50-60
Main machine size(L*W*H) mm 3400*1700*2500
Weight (Ton) 5




Pre-sale

1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.

2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.



After-sale

1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.

2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.

3.From the date of the buyer receive the machines, free warrant for 12 months.



Quality Guarantee

The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.



WHY CHOOSE US?

• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.



Contact us and get latest price

You are very welcome to visit our Shanghai office and Jiangsu factory to inspect the machines.We are looking forward to build a long term relationship with you!

Pls feel free to contact us when you need further support.


Machine pictures

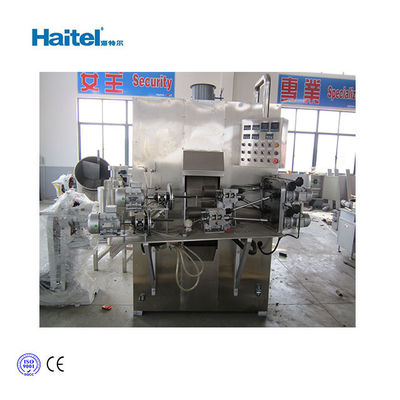

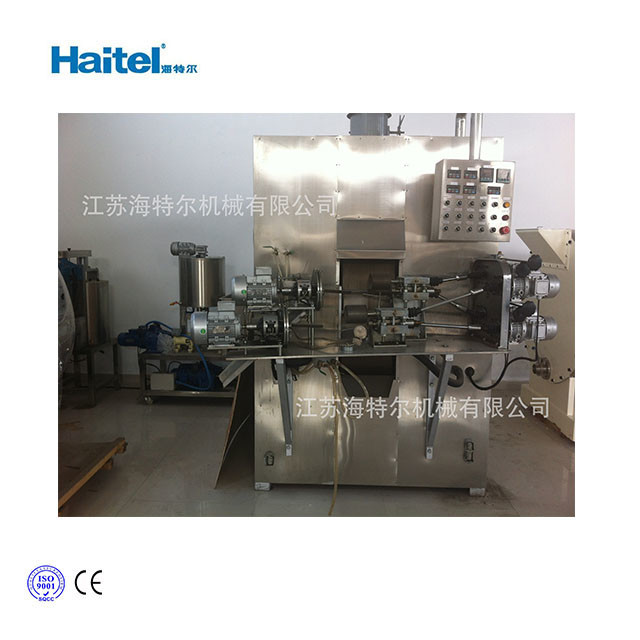

40kg/H 16mm Stick Crispy Egg Roll Bakery Making Machine 5kw 0

Finished product pictures

40kg/H 16mm Stick Crispy Egg Roll Bakery Making Machine 5kw 1
