Soft Hard Candy Vacuum Continuously Cooker 304 Stainless Steel

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Sea-Worthy Packing or Air-Worthy Packing Delivery Time : 10-15 days
Payment Terms : L/C, T/T Supply Ability : 10 pcs per month
Place of Origin: China Brand Name: Haitel
Certification: CE SGS ISO Model Number: HTL-250

Detail Information

Heating Area: 2.45㎡ Steam Pressure: 0.59Mpa5.5~6kg/cm2
Temperature Of Input Syrup: 105~115℃ Max. Yield: 400㎏/hr
Voltage: 220V/380V 50-60Hz Material: 304 Stainless Steel
High Light:

Hard Candy Vacuum Continuously Cooker

,

Soft Candy Vacuum Continuously Cooker

Product Description

Vacuum Continuously Cooker for sugar hard candy soft candy Automatic Candy Making Machine



1.Briefing of the machine

The vacuum sugar pot made by our plant is a sugar making equipment with the process from the sugar pot, volume pump, heating tubes, being condensed by steam heating, storage room, vacuum pot via materials releasing valves, and the finished products.

The machine has advantages of simple operation, reasonable structure, stable performance, convenient adjustment and maintenance, and long life, etc.



2.Main technical features

1,Max. yield 400㎏/hr(one pot per 3 min)

2,Heating area 2.45㎡ (heating tubeφ36×2.5)

3,Steam pressure 0.59Mpa5.5~6kg/cm2

4,Steam consumption at max. yield about 110kg/hr

5,Temperature of input syrup 105~115℃

6,Syrup temperature after being heated 135~145℃

7,Volume pump motor Jo —11—40.6KW1370 r/min

8,piston dia. φ40 max. travel 80 (stepless speed adjustment applicable)

9,3BA9 is used for water, motor JO —32—27.5KW with 2880r/min, vacuum rate (at 0% vacuum) 0.6m/min

max. vacuum 96% 730mm Hg



Packaging and Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Quality Guarantee

The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.



WHY CHOOSE US?

• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.



Contact us and get latest price

You are very welcome to visit our Shanghai office and Jiangsu factory to inspect the machines.We are looking forward to build a long term relationship with you!

Pls feel free to contact us when you need further support.

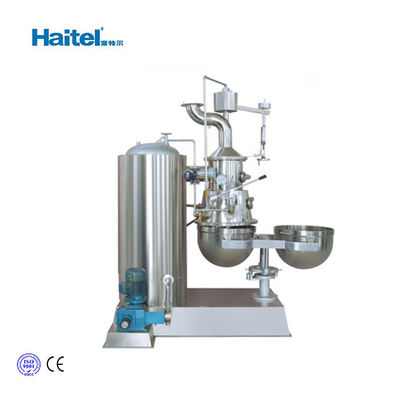

Machine pictures

Soft Hard Candy Vacuum Continuously Cooker 304 Stainless Steel 0

Soft Hard Candy Vacuum Continuously Cooker 304 Stainless Steel 1
