Automatic Oat Cereal Sesame Bar Bakery Making Machine For Rolling Moulding
Contact Person : Hebe
Phone Number : 0086-18217495276
WhatsApp : +008618217495276
|Minimum Order Quantity :||1 set||Price :||negotiable|
|Packaging Details :||Sea-Worthy Packing||Delivery Time :||40 days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||8 sets|
|Place of Origin:||Jiangsu Province,China||Brand Name:||Haitel|
|Application:||Chocolate||Electric Heating Power:||5kw|
|Warranty:||1 Year||Material:||Stainless Steel|
Crispy Egg Roll Processing Machine,
80kg/hr Wafer Stick Processing Machine,
Wafer Stick Making Processing Machine

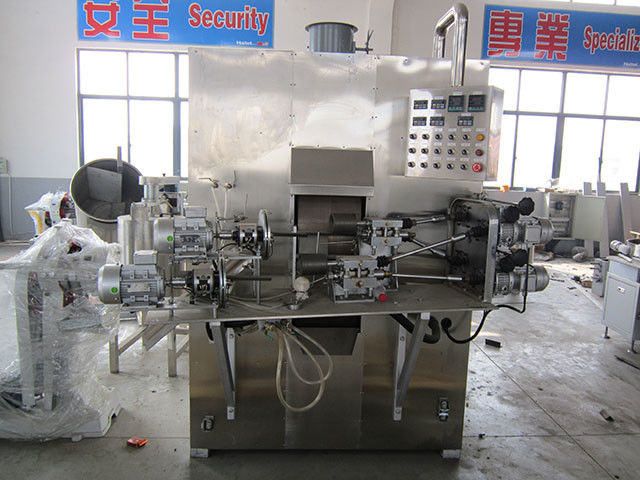

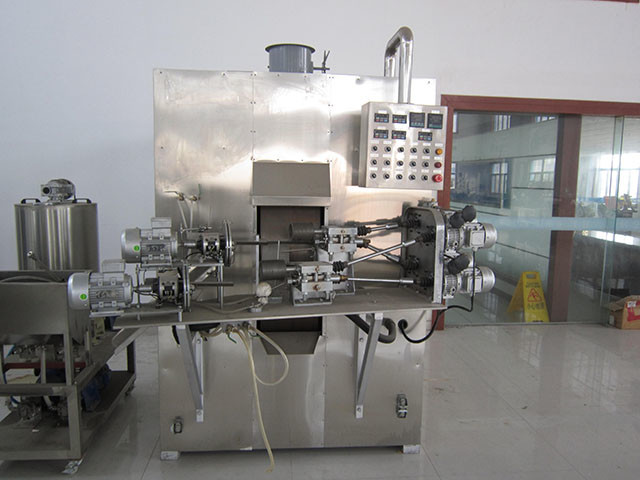

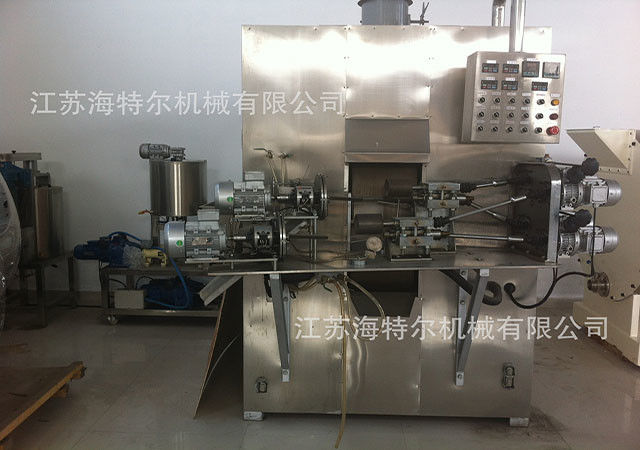

Gas Energy Crispy Egg Roll Wafer Stick Making Processing Machine
1.Egg roll production unit is composed of storing barrels, transmission liquid machines, liquid barrels, color machine, 360 ° rotating auto-baked round, shovel device and the automatic roll feed cutting and electrical control cabinet.
2.It uses far infrared baking , can produce two-color or multi-color hollow egg roll.
1.First step, to make flour, starch, oil, eggs, sugar and other raw materials in the mixer where mixing, and then, take mixing liquid into storing barrel of baking machine, mixing materials through filter transfer into storing barrel continuously by transmission pump and automatic laying-off, the mixing materials is baked on the rotating baking round ,and finished color processing.
2.There is automatic bade egg rolls in the bottom baking round ,it can continuous automatic shovel egg roll ,the egg roll materials is fallen on the transferring belt of egg roll forming machine, and forming hollow and cylinder shape by belt and roll stick, at last , cutter cuts egg roll into the specifications of the length by customers.
1.The baking machine is heated with gas to give a space of a effective temperature-holding, utilizing energy reasonably, by a automatic control system including ignition, alarm cut-off gas generator and temperature control devices.
2.The machines of the unit are installed with a program-controlled system.
3.The speed of the wheel hub and the powder slurry thickness can be adjusted.
4.The diameter of wafer bar can be changed by transferring different reeling bar shafts.
5.The length of wafer bar can be changed by adjusting the diaphragm aperture, which controls a shear.
6.The cream and other fillings can be completely or partly poured into hollow-core wafer bar. In the proceeding above, their main engines are controlled by their own frequency converters.
|Diameter of Wheel Hub (mm)||2000|
|Gas Consumption (kg/h)||4|
|Power Consumption (kw/h)||10|
|Stick diameter||Between 8~16mm|
|Length of egg roll or stick||About 30~150mm, can do more longer according client special order|
|Production Capacity(kg/h)||Hollow core 60; Poured core 80|
|Main machine size(L*W*H) mm||3400*1700*2500|
1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months.
The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.
