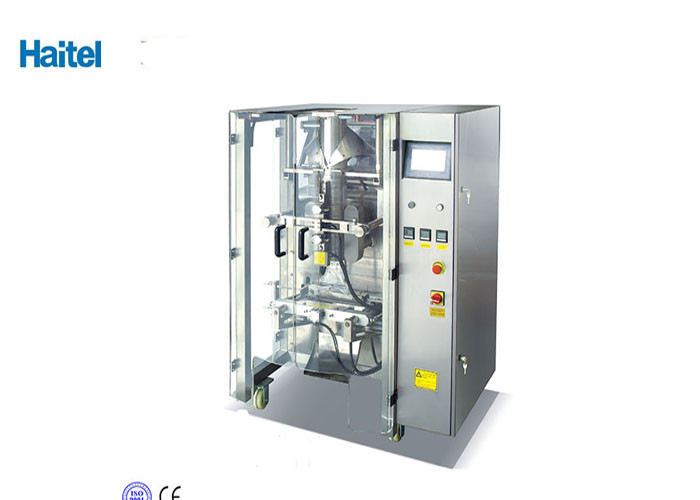

HTL-V420 Large Full Intelligent Vertical Packaging Machine For Granules Flakes

Minimum Order Quantity : 1 Price : negotiable
Packaging Details : Sea-Worthy Packing or Air-Worthy Packing Delivery Time : 50days
Payment Terms : L/C, T/T
Place of Origin: Jiangsu Province, China Brand Name: Haitel
Certification: CE ISO9001 Model Number: HTL-V420

Detail Information

Capacity: 50 Bags/min Bag Size: (L)80-300mm (W)50-200mm
Max.Packing Film Width: 420mm Bag Type: Pack With Film
Total Powder: 4.745KW Voltage: 380V/50HZ
High Light:

vertical filling machine


vertical flow wrapper

Product Description

HTL-V420 Large Vertical Automatic Packaging Machine for granules flakes



It is suitable for packaging products such as granules, flakes and strips, such as sugar granules, potato chips, shrimp strips, jellies, peanuts, etc. within 3000ml.

1. Using color touch screen and stable and reliable two-axis high-precision output PLC control, bag making, metering, filling, sealing, hitting, and cutting bags are completed in one time.
2. The air circuit control and circuit control are separated independently, the noise is small,and the circuit is more stable.
3. The vacuum belt is used to pull the film: the film has less resistance, the bag is formed well, and the belt is not easy to wear.
4. Adopt double servo control to achieve high precision positioning and accurate size.
5. With the external film release mechanism, the packaging film installation is simpler and easier.
6. The deviation adjustment of the packaging bag can be adjusted only on the touch screen, and the operation is simple.
7. The whole machine adopts a closed mechanism to effectively prevent dust from entering the inside of the machine.
8. Adopt electronic weighing method, the package weight is more accurate, and the production cost is lower.


Main Technical parameters

 Item  Content

50 bags/min,it is according to quality of wrapping and supplies

Accuracy ≤±1.5%
 Bag size (L)80-300mm (W)50-200mm

Max.Packing film width

Film width

Bag type

Pack with film, upper seal, lower seal and back seal by automatic bag making machine.

Film thickness

0.06-0.08mm, the best is 0.07-0.08mm

Package material

thermal composite material., like BOPP/CPP, PET/AL/PE etc

 Air consumption 0.8Mpa 0.5m3/min
Total powder 4.745KW

Four wire three phase, 380V 50HZ

Air compressor Not less than 1 cube
Total height 3.508 m

Packaging and Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Quality Guarantee

The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.



• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.


Contact us and get latest price

You are very welcome to visit our Shanghai office and Jiangsu factory to inspect the machines.We are looking forward to build a long term relationship with you!

Pls feel free to contact us when you need further support.


Machine pictures

HTL-V420 Large Full Intelligent Vertical Packaging Machine For Granules Flakes 0

HTL-V420 Large Full Intelligent Vertical Packaging Machine For Granules Flakes 1HTL-V420 Large Full Intelligent Vertical Packaging Machine For Granules Flakes 2
