Automatic Feeding Chocolate Candy Bagging Machine Horizontal Flow Design
Contact Person : Hebe
Phone Number : 0086-18217495276
WhatsApp : +008618217495276
Minimum Order Quantity : | 1 set | Price : | negotiable |
---|---|---|---|
Packaging Details : | Sea-Worthy Packing or Air-Worthy Packing | Delivery Time : | 40 days |
Payment Terms : | L/C, T/T | Supply Ability : | 15 set per month |
Place of Origin: | Jiangsu Province,China | Brand Name: | Haitel |
---|---|---|---|
Certification: | CE/ISO9001 | Model Number: | HTL-A800 |
Detail Information |
|||
Packing Speed: | 200--1000pcs/min | Film Width: | ≤180mm |
---|---|---|---|
Dimension: | 3200*1200*1500mm | Voltage: | 380V 50HZ |
Total Power: | 4.5kw | Weight: | 900kg |
High Light: | candy wrapping machine,twist wrapping machine |
Product Description

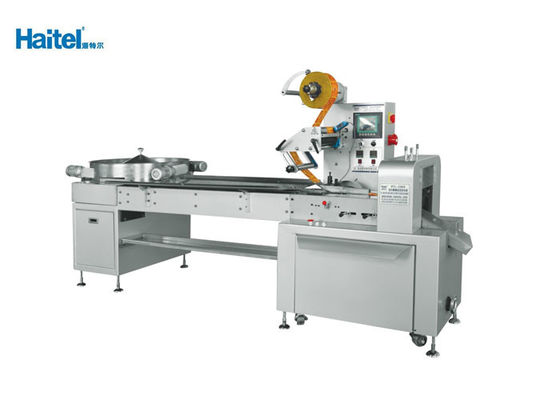

High speed candy packaging machine horizontal fully automatic
Characteristics
1. It’s use servomotor, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and films.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
Application
It is a high speed packing machine for all kinds of variant candy such as square, ball, round, column, button, ellipse and regular piece of candy.
Main technical parameter
Model | HTL-A800 |
Candy size | (L)=10~55mm, (W)=10~30mm, (H)=4~25mm |
Packing speed | 200~1000 pcs/min |
Film width | ≤180mm |
Voltage | 380V/50Hz |
Total power | 4.5 KW |
Dimension (L*W*H) | 3200×1200×1500 mm |
Total weight | 900 kg |
PLC and touch screen | Taiwan |
Photo electricity switch | Yatai |
Transducer | Yatai |
Push button | Delixi |
Temperature controller | Delixi |
Servomotor | Taiwan |
Motor | Zhongweite |
Packaging and Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
