200pcs/Min PLC SS 3 Ply Surgical Mask Making Machine

Minimum Order Quantity : 1pc Packaging Details : wooden case
Supply Ability : 15 sets per month
Place of Origin: China Brand Name: Haitel
Certification: CE Model Number: Htl

Detail Information

Voltage: 220V/380V Capacity: 150-200pcs/min
Material: Nonwoven Fabric Dimension(l*w*h): 4300mm*4200mm*1850mm
Power(w): 8.5kw Automatic Grade: Automatic
High Light:

SS Nonwoven Mask Making Machine

,

200pcs/Min Surgical Mask Making Machine

,

PLC Surgical Mask Making Machine

Product Description

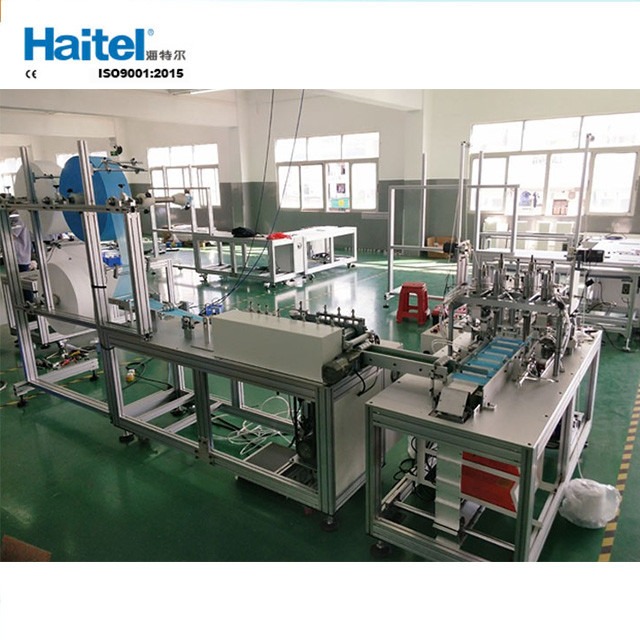

High efficiency servo motor 3ply surgical mask making machine

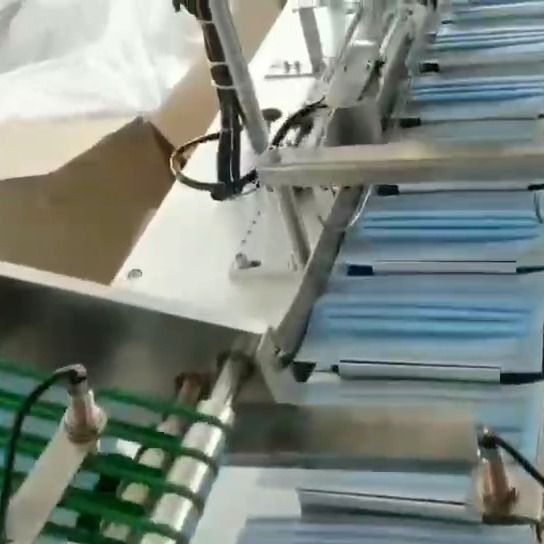

Function introduction of one to two production line :
This production line is an automatic one-to-two mask machine,
and one body machine drives two outer ear belt machines.
After the main body machine outputs the mask body,
the mask body sheet is conveyed to the line conveyor by a conveyor belt structure.
The mask plate is conveyed to the conveyor belt by a line conveyor,
and the mask sheet is conveyed above the first mask plate on the front of the
earband machine through the conveyor belt.
Finally, the mask plate is placed on the earpiece machine's mask by the cylinder
pressing Inside the pan, the earband machine then completes the welding of the
earbands, edging, etc. to complete the production of an earband mask product.
This machine adopts PLC and touch screen control. The main conveyor belt is
transported by a single-phase motor. The stepping motor is reversed.
The transmission is accurate, the control is stable, and the speed is adjustable.

Features
1. High stability, low failure rate, beautiful appearance without rust;
2. Computer PLC programming control, servo drive, high degree of automation;
3. Photoelectric detection of raw materials to avoid mistakes and reduce waste

Technical Parameters:
(1) Equipment size: 6150mm (L) X 3720mm (WO X 1950mm (H) (excluding receiving line);
(2) Appearance color: international standard warm gray 1C (DB standard color), according to this standard
without special instructions;
(3) Equipment weight: ≤5000kg, ground load ≤500KG / m2;
(4) Power supply: 220VAC 5% of equipment, 50HZ, rated power of about 9KW ;
(5) Compressed air: 0.5 ~ 0.7 MPa, using flow rate of about 300L / min;
(6) Operating environment: temperature 10 ~ 35'C, humidity 5 ~ 35% HR, no flammable, corrosive gas,
no dust (cleanness no less than 100,000).
(7) Production efficiency: 90-130PCS / MIN;

1









Specifications:

Model HTL
Production capacity 100-120pieces/min
Power 8.5 kW
Dimension (L*W*H) 4300mm*4200mm*1850mm

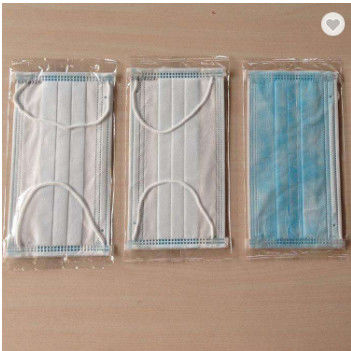

Samples:



_20200310103407

Our Services


Pre-sale



1.confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.



2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.







After-sale



1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.



2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.



3.From the date of the buyer receive the machines, free warrant for 12 months

Company Information





.jpg

Packaging & Shipping

.jpg

1. Product production is completed, by the quality inspection department to check.

2.After inspection qualified, clean for whole machine.

3.Packing:

a. Inside the machine put desiccant.

b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap.

c. On wood packaging on the outside of the machine, then use metal reinforcement with steel.



4.Container:according to different products for reinforcement.
