Product Details:
|
|
| Place of Origin: | Jiangsu Province,China |
|---|---|
| Brand Name: | Haitel |
| Certification: | CE/ISO9001 |
| Model Number: | HTL-280E |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Sea-Worthy Packing or Air-Worthy Packing |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Weight: | 650kg | Power: | 2.5kw |
|---|---|---|---|
| Voltage: | 220V/380V 50HZ | Packing Speed: | 50-350bags/min |
| Rewind Diameter: | φ300mm | Dimension: | 4000*950*1450mm |
| Material: | Stainless Steel | Type: | Multi-Function Horizontal Packaging Machine |
| High Light: | 350 bags/min horizontal packaging machine,PLC Control horizontal packaging machine,Stainless Steel Horizontal Packaging Machine |
||
Product Description

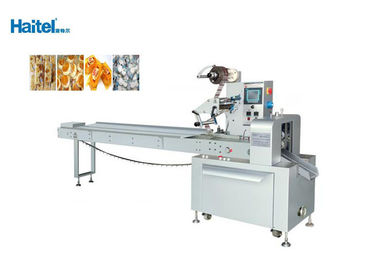

Stainless Steel Food Automatic Horizontal Packing Machine PLC Speed Control
Characteristics
1) The machine uses servomotor, flexible bag length cutting operator neednot to adjust the unloading working saving time and films.
2) Human-machine operation, convenient and quick parameter setting.
3) Self diagnosis failure function, clear failure display.
4) High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5) Separate PID control to temperature, suitable for various packing materials.
6) Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7) Simple driving system, reliable working, convenient maintenance.
8) All the controls are achieved by software, convenient for function adjusting and upgrading.
Application
Suitable for packing regular objects such as biscuit, egg pie ,bread, chocolate, candy, instant noodle, moon cakes, hardware, daily consuming ware, industrial parts, paper box or trays.
Main technical parameters
| Model | HTL-280E |
| Film width | Max.180mm |
| Bag length | 50-115mm |
| Bag width | 30-80mm |
| Product height | Max.35mm |
| Packing speed | 60-350 bag/min |
| Voltage | 220V/ 50HZ |
| Power | 2.5kw |
| Dimension | (L)3800×(W)1150×(H)1650mm |
| Total weight | 650Kg |
| Remark |
Can be added printer and air device(OPTION) |
HTL-280E Main collocate
| No | Parts | Brand |
| 1 | PLC and touch screen | Taiwan |
| 2 | Photo electricity switch | Yatai |
| 3 | Transducer | Yatai |
| 4 | Push button | Delixi |
| 5 | Temperature controller | Delixi |
| 6 | Approach switch | Delixi |
| 7 | Servomotor | Taiwan |
| 8 | motor | Zhongweite |
WHY CHOOSE US?
• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.
Packaging and Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

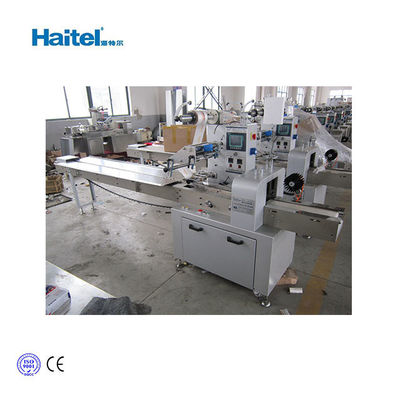

Machine and sample pictures
Company introduction
We attend many exhibitions every year and honored to have clients visit us !
