Software Program Control Horizontal Flow Pack Machine Easy Maintenance

Minimum Order Quantity : 1set Price : negotiable
Packaging Details : wooden Delivery Time : 30days
Payment Terms : L/C, T/T Supply Ability : 10set/one month
Place of Origin: China Brand Name: Haitel
Certification: CE ISO9001 Model Number: HTL-280B

Detail Information

Packing Speed: 50-250bag/min Weight: 650kg
Voltage: 220V/380V Dimension: 4000*950*1450mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Bag Length: 90-220/150-330mm
High Light:

horizontal flow wrap machine

,

pillow type packing machine

Product Description

multifunctional program software horizontal flow pack packing machine



Characteristics

1. Dual frequency transformer (option for servo motor),instant bag length setting and cutting without film feeding test

run,saving in time and film.

2. Friendly operational interface,easy to set up parameters.

3. Self trouble shooting function,easy to identify.

4. High sensible photoelectrical tracking system,digital setup for positioning and precisely cutting and sealing,no

jiaw-knife cut rejects.

5. Intependent PID temperature control,suits for all types of packaging materials/

6. High sanitation standard,stable performence,easy for maintenance.

7. All controls by program software,wasy for upgrade.

8. All the controls are achieved by softare,convenient for function adjusting and upgrading.



Main techinical parameters



Model HTL-280B HTL-280C HTL-280D HTL-280E
Film width Max.280mm Max.240mm Max.180mm
Bag length 90-220/150-330mm 65-190mm/120-280mm 90-220mm 50-115/45-90mm
Bag width 50-140mm 30-110mm 30-80mm
Product height Max.40mm Max.55mm Max.35mm
Rewind diameter Max.280mm
Packing speed 50-250bags/min 40-280bags/min 60-350bags/min
Voltage 220V/380V 50HZ
Power 2.5KW
Dimension (L)4000 *(W)950*(H)1450mm
Total weight 650kg





Pre-sale



1. confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.



2. Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.



After-sale



1. When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.



2. In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.



3. From the date of the buyer receive the machines, free warrant for 12 months

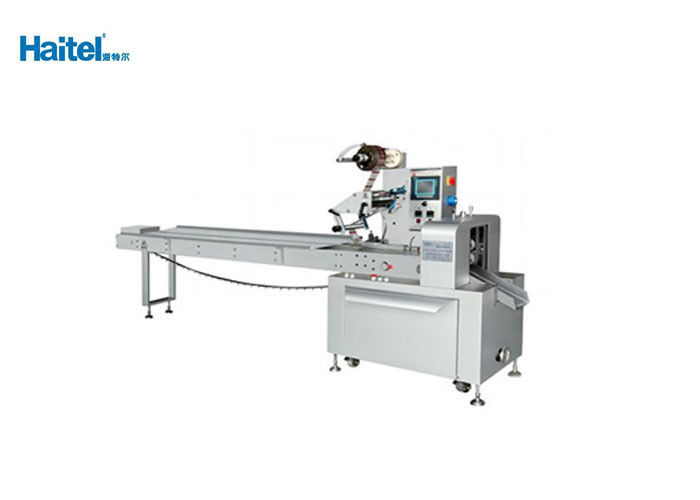

Software Program Control Horizontal Flow Pack Machine Easy Maintenance 0

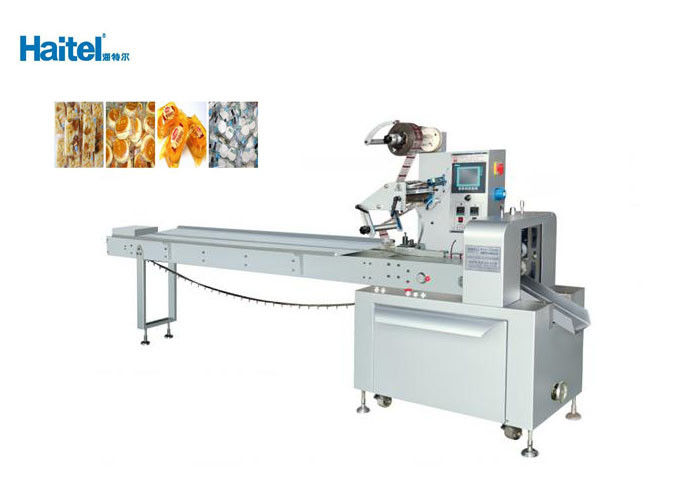

Software Program Control Horizontal Flow Pack Machine Easy Maintenance 1

111

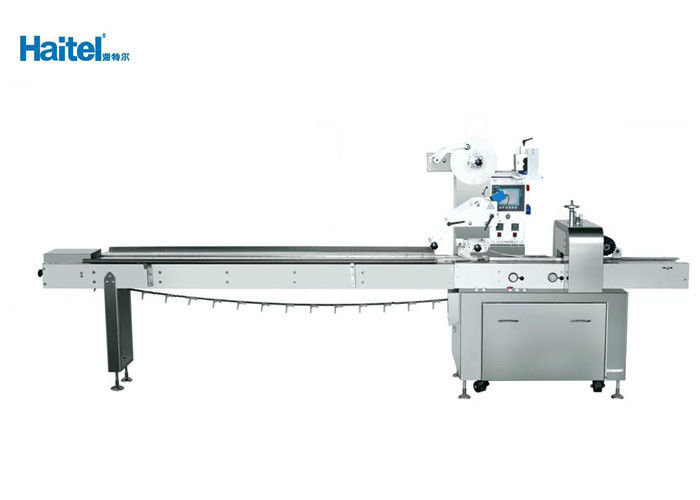

Software Program Control Horizontal Flow Pack Machine Easy Maintenance 3
